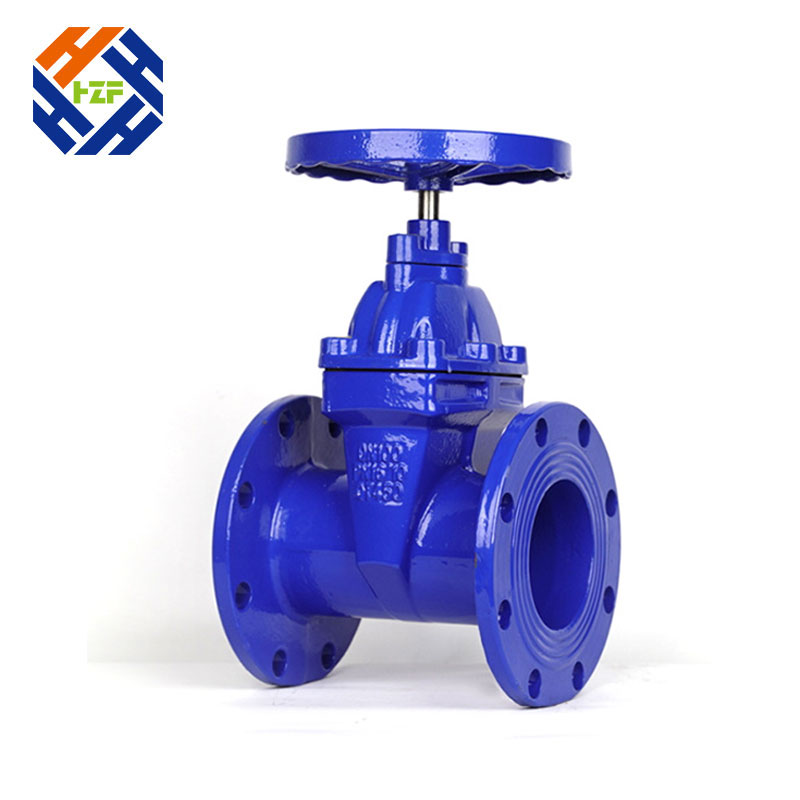

Katup kita dirancang kanggo tahan suhu sing dhuwur lan kahanan sing ekstrem, saengga cocog kanggo lingkungan industri sing nuntut. Ing pabrik kita, kita mung nggunakake bahan kualitas paling apik lan teknologi inovatif kanggo nggawe Cast Steel Gate Valve PN16-PN40 sing ketemu standar internasional.
Cast Steel Gate Valve PN16-PN40 Fitur
Desain & Pabrik sesuai karo DIN3352
Tes & Priksa selaras karo API 598
Dimensi adhep-adhepan cocog karo din3202-F15
Dimensi flange cocog karo DIN 2545 PN40
Jatah tekanan-suhu cocog karo DIN2401
|
NO. |
PART |
MATERI |
NO. |
PART |
MATERI |
|
1 |
BADAN |
GS-C25+ER308 |
14 |
GLAND FLANGE |
GS-C25 |
|
2 |
DISC |
GS-C25+ER410 |
15 |
BOLT |
A193 B7 |
|
3 |
STEM NUT |
ZQAL9-4 |
16 |
NUT |
A194 2H |
|
4 |
STEM |
ICR13 |
17 |
YOKE |
GS-C25 |
|
5 |
GASKET |
SS304+GRAPHITE |
18 |
PLANE BEARING |
GCR |
|
6 |
NONNET |
GS-C25 |
19 |
BISECT CIRQUE |
A276 410 |
|
7 |
BOLT |
A193 B7 |
20 |
GLAND BEARING |
1035 |
|
8 |
NUT |
A193 2H |
21 |
GAMPANG |
QT400-17 |
|
9 |
BOLT |
A193B7 |
22 |
PENCUCI |
A3 |
|
10 |
NUT |
A194 2H |
23 |
NUT |
A194 2H |
|
11 |
PACKING |
GRAFIT KANGGO |
24 |
CANGKANG LEMAK |
KUNINGAN |
|
12 |
PACKING |
GRAFIT FLEKSIBEL |
25 |
NAMEPLATE |
304 |
|
13 |
KELENJAR |
A182 F6 |
26 |
RIVET |
H62 |
|
Tekanan |
PN16 |
PN25 |
PN40 |
||||||
|
Ukuran |
L |
H |
W |
L |
H |
W |
L |
H |
W |
|
50 |
250 |
305 |
200 |
250 |
325 |
200 |
250 |
325 |
200 |
|
65 |
270 |
354 |
200 |
270 |
363 |
200 |
270 |
370 |
200 |
|
80 |
280 |
402 |
250 |
280 |
415 |
250 |
280 |
430 |
250 |
|
100 |
330 |
437 |
250 |
330 |
456 |
300 |
330 |
480 |
300 |
|
125 |
360 |
496 |
300 |
360 |
505 |
350 |
360 |
532 |
350 |
|
150 |
390 |
541 |
350 |
390 |
556 |
400 |
390 |
589 |
400 |
|
200 |
460 |
699 |
400 |
460 |
744 |
450 |
460 |
783 |
450 |
|
250 |
530 |
815 |
450 |
530 |
864 |
500 |
530 |
888 |
500 |
|
300 |
630 |
914 |
500 |
630 |
948 |
550 |
630 |
965 |
550 |
|
350 |
690 |
1189 |
550 |
690 |
1269 |
600 |
690 |
1285 |
600 |
|
400 |
750 |
1350 |
600 |
750 |
1450 |
600 |
750 |
1512 |
600 |
